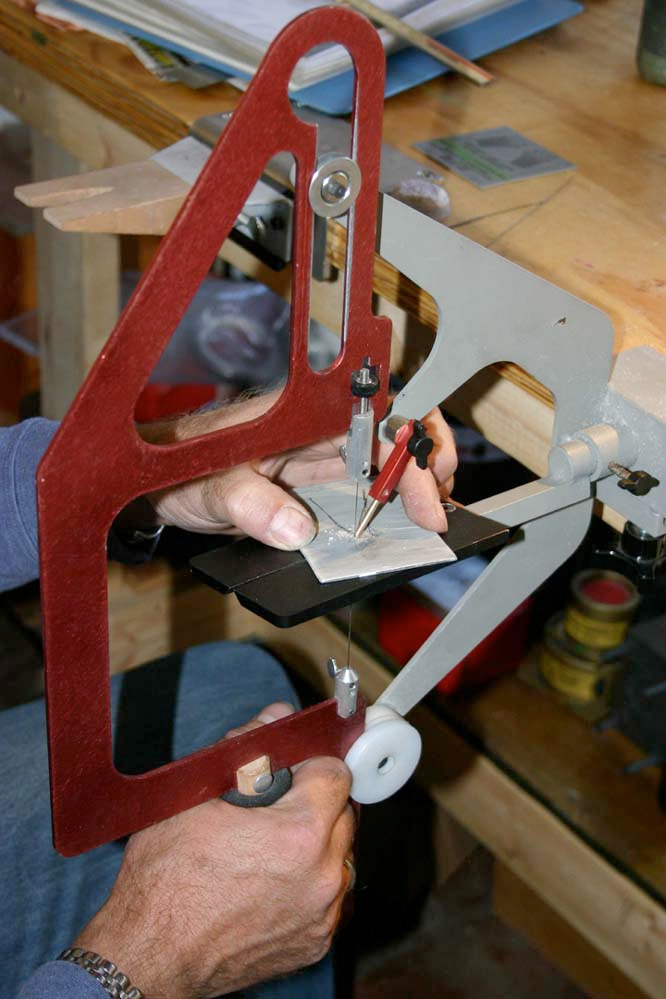

Precision Saw Guide:
The MJSA Innovation Award Winner!
$385.00
Lightweight (7 ounces) laser cut anodized aluminum frame. Designed for extreme rigidity with a 5" deep throat. The frame is so rigid that it cannot be flexed to tension the blade as in other frames. Instead, the blade tensioning occurs by turning a knurled knob on top of the upper blade clamp. No more dents in your sternum!
Soft closed cell foam handle-grip. Ergonomically angled slightly to more nearly match the mechanics of your sawing motion. The foam easily conforms to your hand and feels good!
Vertical alignment is incorporated into the frame itself. Two ball bearing wheels lock the saw at the top and the bottom and provide perfect alignment, and at the same time allow immediate removal of the saw for blade changes. The upper guide wheel runs within a vertical slot that has a keyhole opening at the top for disengagement. The bottom guide is simply the front of the frame running in the lower wheel.
Hold-down pin. This is a brass pin mounted in a swivel mount that holds down the metal as you are sawing. It helps to reduce blade breakage as the metal cannot suddenly bind and jump. Easily adjustable for various height material, including plexiglas for matrix dies. The pin also provides guidance and support to the blade itself, allowing more pressure to be applied to the blade.
Bench pin. Hard anodized aluminum with a narrow slot. This is the same bench pin that is used on the New Concept Saw. Bench pin tilts 45 degrees each way for angular cuts.
|
